Centralised Aadhaar Vault
Background and Objective
Keeping in the view of privacy of Aadhaar Numbers and its related data, the Unique Identification Authority of India (UIDAI), vide its circular of 2017, has made it compulsory to store all Aadhaar Numbers collected by authentication user Agency (AUA)/e-KYC user Agency (KUA)/Sub-AUAs/ or any other agency in a Centralized Dedicated storage in encrypted form identified as “Aadhaar Data Vault” (ADV).
Aadhaar Data Vault enables e-Governance applications in eliminating Aadhaar footprint in IT eco-system and builds an abstraction layer (Reference Key) for safeguard of Aadhaar Numbers and its related data.
All the agencies which store Aadhaar Numbers in a structured and electronic form for internal identification purposes such as attendance management, ration delivery, scholarship delivery, financial transactions (PFMS) etc. may use Aadhaar Data Vault Service which eventually results in low risk of unauthorized access of Aadhaar Numbers and its related data within organization systems.
ADV Service at a Glance

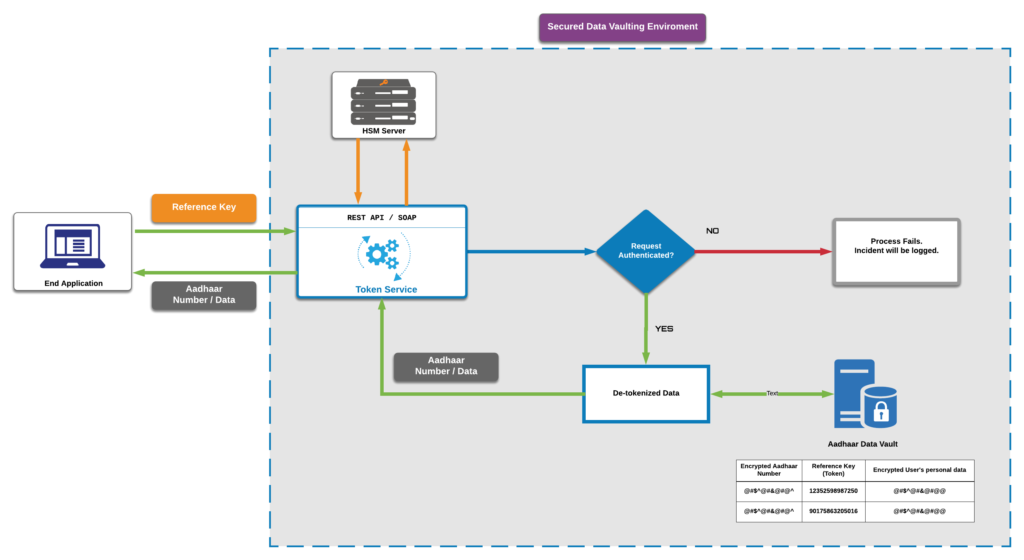

NIC has set up a centralized facility for storing Aadhaar numbers and its related data in a secure dedicated infrastructure using State-of-the-art technology. The Aadhaar numbers are encrypted using keys specifically created for the purpose in intrusion-resistant FIPS 140-2 Level 3 Certified Hardware Security Module (HSM).
- End Application
- Reference Key
- Aadhaar Number / Data
- HSM Server
- REST API SOAP
- Token Service
- Request Authenticated?
- NO
- Process Fails. Incident will be logged.
- YES
- De-tokenized Data
- Aadhaar Number/Data
- Aadhaar Data Vault
- Secured Data Vaulting Environment
- Encrypted Aadhaar Number
- Reference Key (Token)
- Encrypted User’s personal data
- 12352598987250
- 90175863205016
The ADV stores Aadhaar numbers collected by an e-governance applications in a secure encrypted database separate from user application database. Each Aadhaar Number is mapped to a Reference Key, which is returned to the user application for storing in place of the Aadhaar number and this reference key is used for delivery of Aadhaar based services.
Salient Features
- Secure Dedicated Storage
- Robust Key Management Solution including Automated Key Migration
- High Availability
- Highly Scalable
- Bulk Tokenization and De-Tokenization
- Intrinsic Aadhaar de-duplication
- FIPS 140-2 Level 3 HSM devices
- Multi-Layer Security architecture
- REST APIs based seamless integration with applications

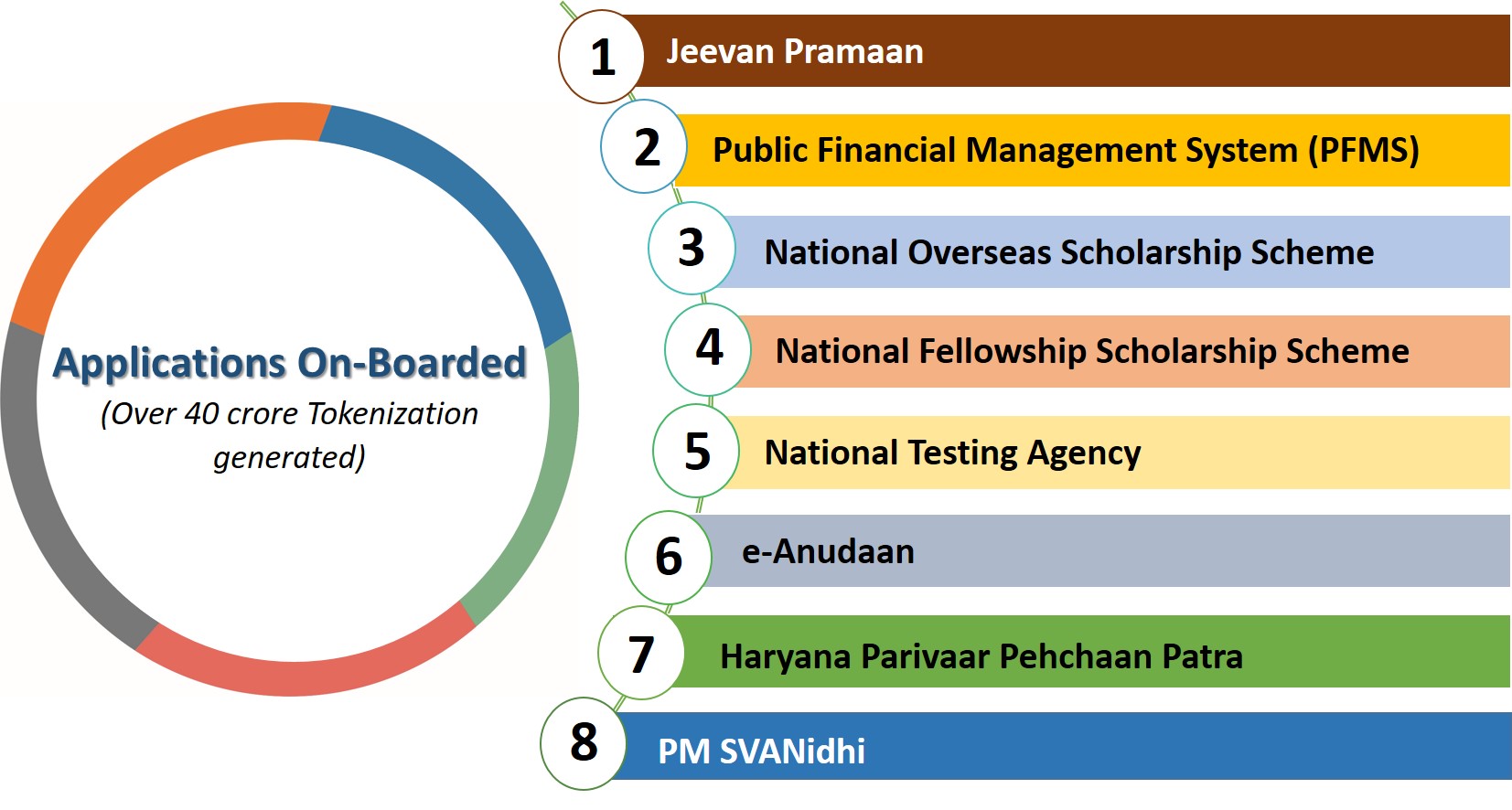

Applications On-Boarded (Over 40 crore Tokenization generated)
- 1 Jeevan Pramaan
- 2 Public Financial Management System (PFMS)
- 3 National Overseas Scholarship Scheme
- 4 National Fellowship Scholarship Scheme
- 5 National Testing Agency
- 6 e-Anudaan
- 7 Haryana Parivaar Pehchaan Patra
- 8 PM SVANidhi
Central Govt. and State Govt. Ministries, Departments, Organizations availing IT services from NIC and having their servers hosted on NICNET may avail Aadhaar Data Vault Service.
For more details please contact at : support-edmsd[at]nic[dot]in
